SENSING MIPI Camera Solutions Overview
Product Overview
SENSING collaborates with industry-leading image sensor suppliers such as SONY, Omnivision, ON Semiconductor (ONSEMI), etc., to offer a series of high-performance MIPI interface camera modules. Our products are widely used in machine vision, intelligent transportation, aerospace, industrial inspection, and other scenarios, meeting customers' requirements for high-definition, low-latency, and high-reliability image acquisition.
Product List
Complete MIPI Camera Series
| No. | Product Model | Sensor | Resolution | Max Frame Rate | Output Format | Key Features | Product Links |
|---|---|---|---|---|---|---|---|
| 1 | SG2-IMX662C-MIPI-Hxxx | SONY IMX662 (2.13MP) | 1920×1080 | 60fps | MIPI RAW@10bit/12bit | HDR Support, 1/2.8" CMOS | View Details |
| 2 | SG3-ISX031C-MIPI-Hxxx | SONY ISX031 (2.95MP) | 1920×1536 | 60fps | MIPI YUV422@8bit | Built-in ISP, Automotive Grade | View Details |
| 3 | SG8-IMX678C-MIPI-Hxxx | SONY IMX678 (8.29MP) | 3840×2160 (4K) | 60fps | MIPI RAW@10bit/12bit | 4K Ultra HD, 1/1.8" CMOS | View Details |
| 4 | SG12-IMX577C-MIPI-Hxxx | SONY IMX577 (12MP) | 4056×3040 | 240fps (1080P) | MIPI RAW@10bit/12bit | High Speed, 1/2.3" CMOS | View Details |
| 5 | SG20-IMX283C-MIPI-Hxxx | SONY IMX283 (20.3MP) | 5472×3648 | 25fps (Full Res) | MIPI RAW@10bit/12bit | Ultra High Resolution, Type 1 Sensor | View Details |
Core Technology Advantages
Premium SONY Sensor Technology
- IMX662: 2.13MP with HDR support
- ISX031: Built-in automotive ISP
- IMX678: 8.29MP 4K ultra-high definition
- IMX577: 12MP high-speed imaging
- IMX283: 20.3MP ultra-high resolution
- Advanced CMOS technology with superior low-light performance
Comprehensive Platform Support
- NVIDIA Jetson: Orin Nano/NX Developer Kits
- HiSilicon: Professional SOC platforms
- Rockchip (RK): Embedded vision systems
- Qualcomm: Mobile and edge computing
- Multiple JetPack versions: JP5.1.2, JP6.1, JP6.2
- Seamless driver integration and support
Advanced Image Processing
- Hardware ISP: Built-in ISX031 automotive processor
- Multiple output formats: RAW10/12, YUV422
- HDR imaging: High dynamic range support
- High frame rates: Up to 240fps capability
- Professional lens options: M12 and C-mount compatibility
- Temperature resilience: -30°C to +85°C operation
Complete MIPI Camera Product Series

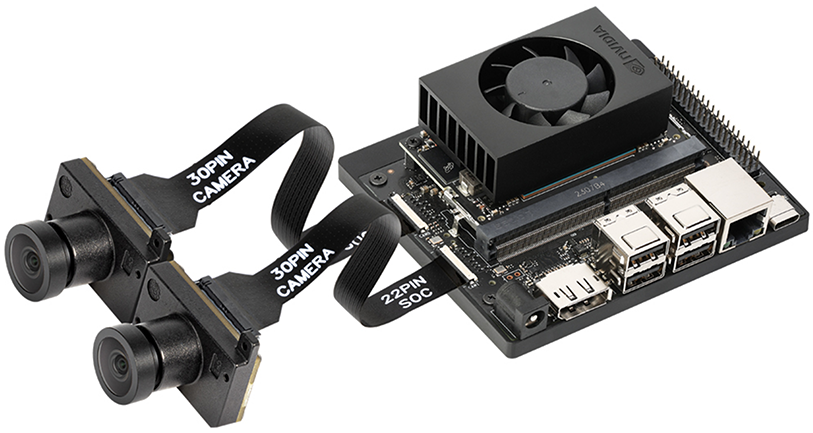

SENSING MIPI Camera Solutions Overview
SG2-IMX662C-MIPI - Entry Level with HDR
Key Specifications
- Resolution: 1920×1080 (2.13MP)
- Frame Rate: Up to 60fps
- Sensor Size: 1/2.8" CMOS
- Output: MIPI RAW@10bit/12bit
- Power: < 300mA @3.3V
- Temperature: -30°C ~ +85°C
Ideal Applications
- IoT edge devices
- Smart home systems
- Educational robotics
- Security cameras
- Embedded vision projects
- Consumer electronics
SG3-ISX031C-MIPI - Automotive Grade with Built-in ISP
Key Specifications
- Resolution: 1920×1536 (2.95MP)
- Frame Rate: Up to 60fps
- Sensor Size: 1/2.42" CMOS
- Output: MIPI YUV422@8bit
- Built-in ISP: Automotive grade
- Power: < 500mA @3.3V
Ideal Applications
- ADAS systems
- Automotive cameras
- Industrial automation
- Smart transportation
- Embedded AI inference
- Real-time processing
SG8-IMX678C-MIPI - 4K Ultra HD
Key Specifications
- Resolution: 3840×2160 (8.29MP)
- Frame Rate: Up to 60fps
- Sensor Size: 1/1.8" CMOS
- Output: MIPI RAW@10bit/12bit
- Pixel Size: 2.0μm
- Power: < 300mA @3.3V
Ideal Applications
- 4K video surveillance
- Drone aerial photography
- Industrial inspection
- Broadcasting equipment
- Scientific imaging
- High-definition monitoring
SG12-IMX577C-MIPI - High-Speed Imaging
Key Specifications
- Resolution: 4056×3040 (12MP)
- Frame Rate: Up to 240fps (1080P)
- Sensor Size: 1/2.3" CMOS
- Output: MIPI RAW@10bit/12bit
- Pixel Size: 1.55μm
- Power: < 300mA @3.3V
Ideal Applications
- High-speed motion analysis
- Sports broadcasting
- Industrial quality control
- Scientific research
- Motion capture systems
- Fast production lines
SG20-IMX283C-MIPI - Ultra High Resolution
Key Specifications
- Resolution: 5472×3648 (20.3MP)
- Frame Rate: Up to 25fps (Full Res)
- Sensor Size: Type 1 (15.86mm diagonal)
- Output: MIPI RAW@10bit/12bit
- Pixel Size: 2.4μm
- Mount: C-mount lens support
Ideal Applications
- Precision measurement
- Medical imaging
- Scientific research
- Aerial mapping
- Quality inspection
- Microscopy applications
Comprehensive Development Support
Software & Driver Support
Driver Repository & Downloads
GitHub Repository: SENSING-Technology Camera Drivers
Supported JetPack Versions:
- JetPack 6.2 (L4T R36.4.3)
- JetPack 6.1 (L4T R36.4)
- JetPack 6.0 (L4T R36.3)
- JetPack 5.1.2 (L4T R35.4.1)
Installation Process:
- Select appropriate driver package
- Use DownGit for download
- Follow included installation instructions
Platform Compatibility
Primary Platforms:
- NVIDIA Jetson Orin Nano Developer Kit
- NVIDIA Jetson Orin NX Developer Kit
Camera Interface:
- MIPI CSI-2 interface
- FPC connector (30-pin, 0.5mm pitch)
- I2C control interface
- Standard MIPI protocols
Development Tools:
- Sample applications
- API documentation
- Integration guides
Hardware Integration Support
Connector & Cable Options
Standard FPC Cables:
- 22-Pin FPC (339901-0010, 0.5mm pitch)
- 15-Pin FPC (339901-0011, 1.0mm pitch)
- AFC07-S22ECA-00 (for SG20-IMX283C)
Connector Types:
- FH67-30S-0.5SV (Standard)
- AFC07-S22ECA-00 (High Resolution)
Lens Compatibility
M12 Mount Lenses (Most Models):
- Wide angle: 120°-196° HFOV
- Standard: 60°-100° HFOV
- Telephoto: 15°-30° HFOV
C-Mount Lenses (SG20-IMX283C):
- Professional grade optics
- Variable focal lengths
- Low distortion options
