Getting Started with PANDA serial PG2

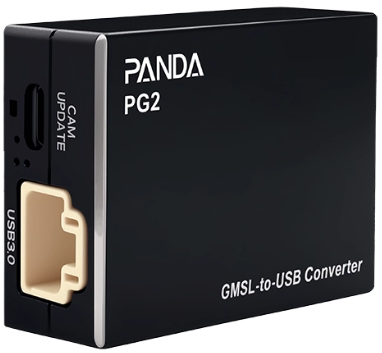

Overview
PANDA serial PG2 is designed by SZ SENSING TECH CO.,LTD . It can convert camera signals into USB 3.0 interface without loss,and supports SENSING cameras of the GMSL series
Key Features and Application
Features:
• Uncompressed video acquisition
• R/W camera register through I2C
• Multi−Camera Synchronization Support
• Update camera firmware
Application:
• Autonomous Driving&machine
• Video Capture
• Laboratory
• USB camera
Specification parameters
| Parameter | Value |
|---|---|
| Deserializer | MAX9296AGTM/V+T |
| Resolution supported | 1920 * 1080@60fps 1920 * 1536@30fps only one camera is supported |
| Frame rate | YUV422/RAW12 |
| Compressed | NO |
| Interface of output | USB3.0 |
| Camera Connector | Coaxial Connector FMK2252AW-001-TL30G-50 |
| Trigger mode | Support external trigger |
| Communication | Support R/W register (Only via SensingCaptureV3.exe) |
| OS Supported | Windows or Linux /Standard V4L2 |
| Power Supply | By USB port /Support external Power |
| Current | < 500mA |
| Temperature | -40 ~ +75°C |
| Dimensions | 45mm(W), 64mm(L), 23.6mm(H) |
| Material | Metal |
| Color | Black |
Hardware Preparation

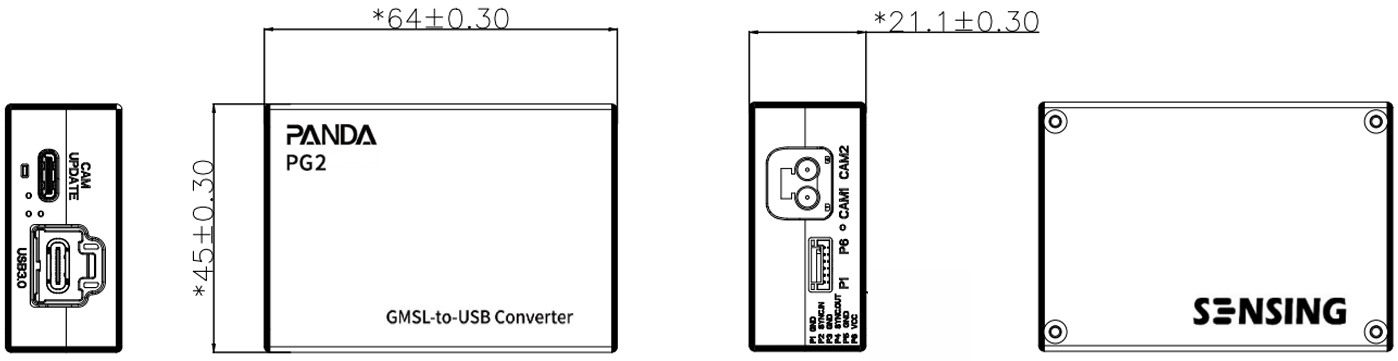

Dimensions
Parts List
| Part Number | Model | Description | Quantity |
|---|---|---|---|
| 169900-0834 | GH1.25-6PIN-1000mm | External Trigger Cable | 1 |
| 169900-0004 | TZJC-PC-ZZ-0250A | 0.5M 2 in 1coaxial cable | 1 |
| 161000-0001 | Coaxial Cable | SG-JS2JS2200L | 1 |
| 169900-0811 | USB3.0 A to TYPE-C 1M cable | USB cable(Video display) | 1 |
| 169900-0985 | Type-C data cable_1m_USB 2.0 | Update camera firmware cable | 1 |
Supported Camera Model List
The following table lists the currently supported camera models and their corresponding product series:
NO. | Camera Product Series |
|---|---|
| 1 | SG1-OX01F10C-GMSL-Hxxx |
| 2 | SG1S-OX01F10C-G1G-Hxxx |
| 3 | SG2-AR0231C-0202-GMSL-Hxxx |
| 4 | SG2-AR0233C-5200-G2A-Hxxx |
| 5 | SG2-IMX390C-5200-G2A-Hxxx |
| 6 | SG2-OX03CC-5200-G2F-Hxxx |
| 7 | SH2-N1B60-G2A-Hxxx |
| 8 | SG2S-OX03CC-G2F-Hxxx |
| 9 | SN2M4EFGD |
| 10 | SG3S-OX03JC-G2F-Hxxx |
| 11 | SG3S-ISX031C-GMSL2F-Hxxx |
| 12 | SG3S-ISX031C-GMSL2-Hxxx |
| 13 | SG3S-IMX623C-G2F-Hxxx |
Software Preparation
SDK Download
| Operating System | Hardware Version | Software Tool | Download Link |
|---|---|---|---|
| windows | v3.0 | SensingCaptureV3 | Download |
If you encounter any issues downloading the SDK or need access to older versions, please contact our technical support team at support@sensing-world.com or visit our GitHub repository for the latest releases.
Detailed Usage Instructions
For comprehensive software setup, please refer to our detailed application guide:
