RedFox-D3Gx

Overview

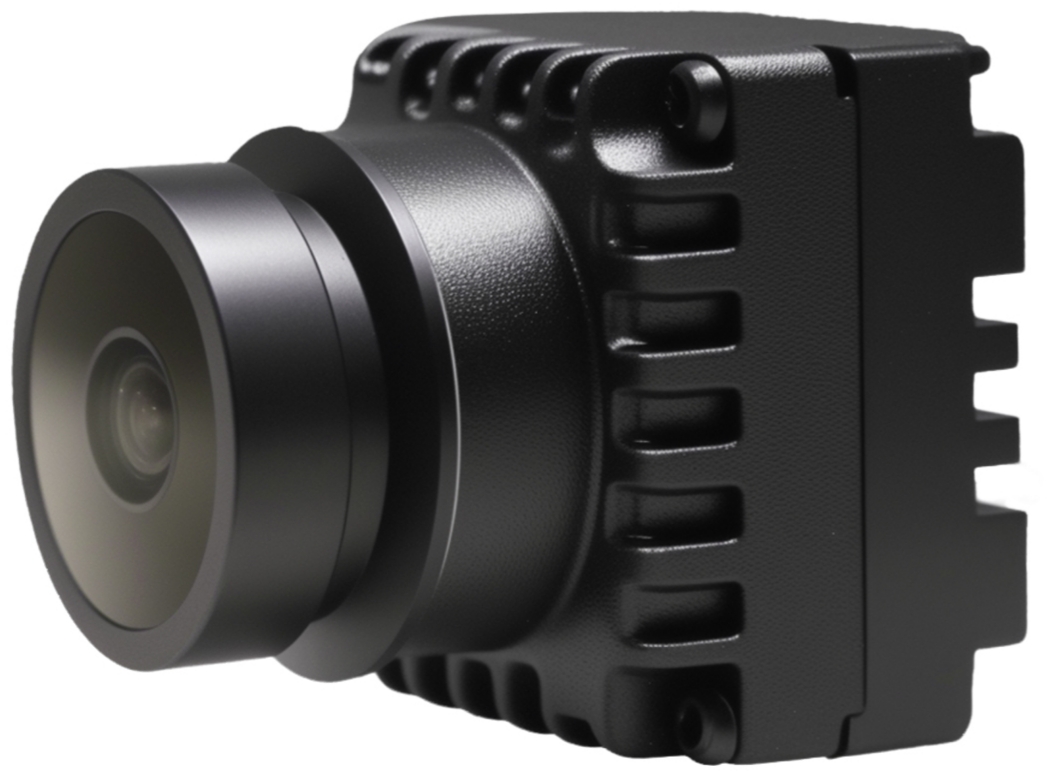

The camera is equipped with the SONY automotive-grade CMOS image sensor and Maxim GMSL serializer. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality. It comes with an IP67-rated enclosure and AA lens that is focused and glued in factory.

Buy Now

Key Features and Application

Features:
• Support multi−camera synchronization
• Support different focal length lens
• Support external trigger
• RoHS

Application:
• Autonomous Driving
• ADAS + Viewing Fusion
• High Dynamic Range Imaging
• Robotics

Getting Started

Specifications

Parameter	Specification
Sensor	SONY 2.95MP RGGB
ISP	Built-in
Image Size	1/2.42 inch CMOS
Output Pixels	1920H×1536V @30fps (default) 1920H×1536V @60fps
Resolution	Center ≥800LW/PH, Around ≥600LW/PH (RedFox-D3GF only meets center standard)
Pixel Size	3.0μm × 3.0μm
Frame Rate	MAX 60fps
HDR Support	Yes
LEM	Yes
HDR Range	Up to 120 dB
Output Data	YUV422
Serializer	MAXIM MAX96717
Camera Interface	GMSL2
Power Supply	9~16V Camera
Current	400mA@12V (with Heating)
Connector	Amphenol Fakra Z Code (Camera)
Operating Temperature Range	-40°~+85°C
Dimensions	W: 30mm, L: 30mm
Weight	< 100g

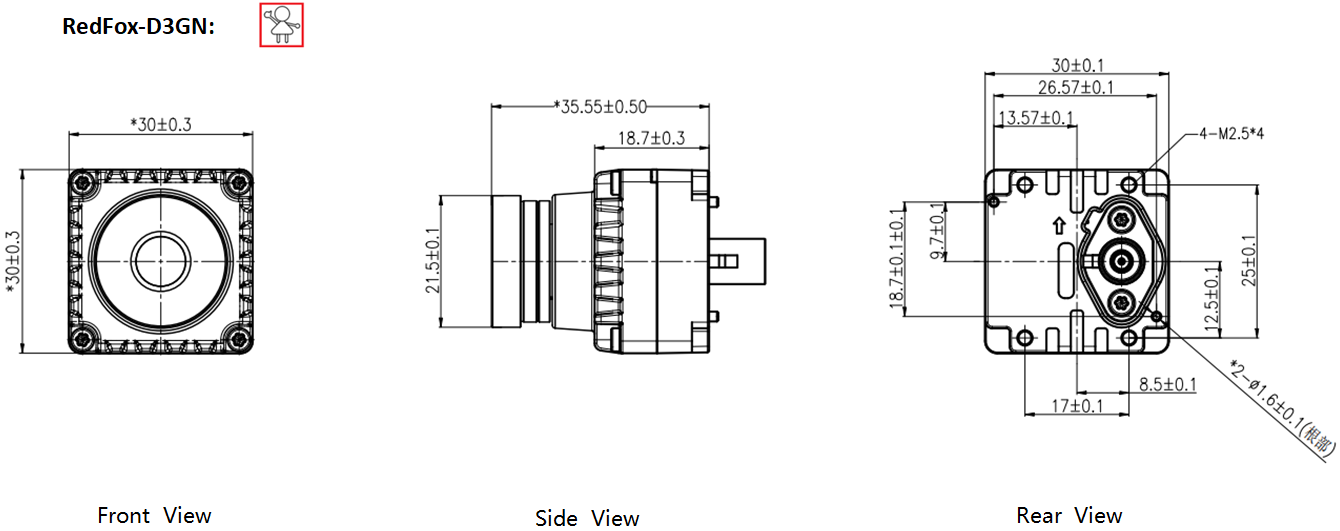

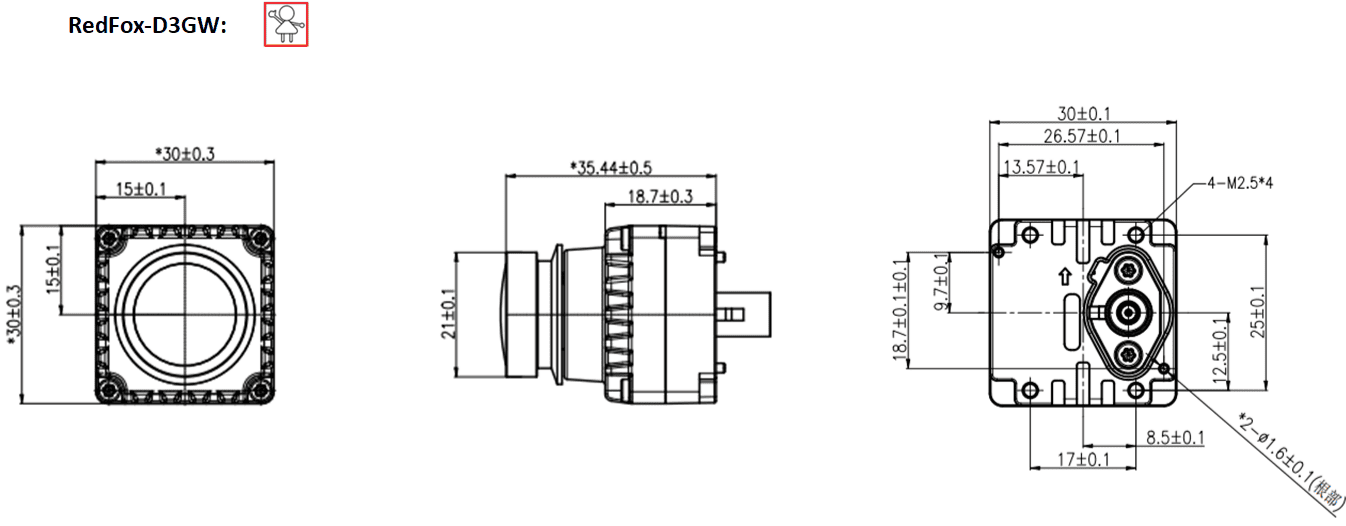

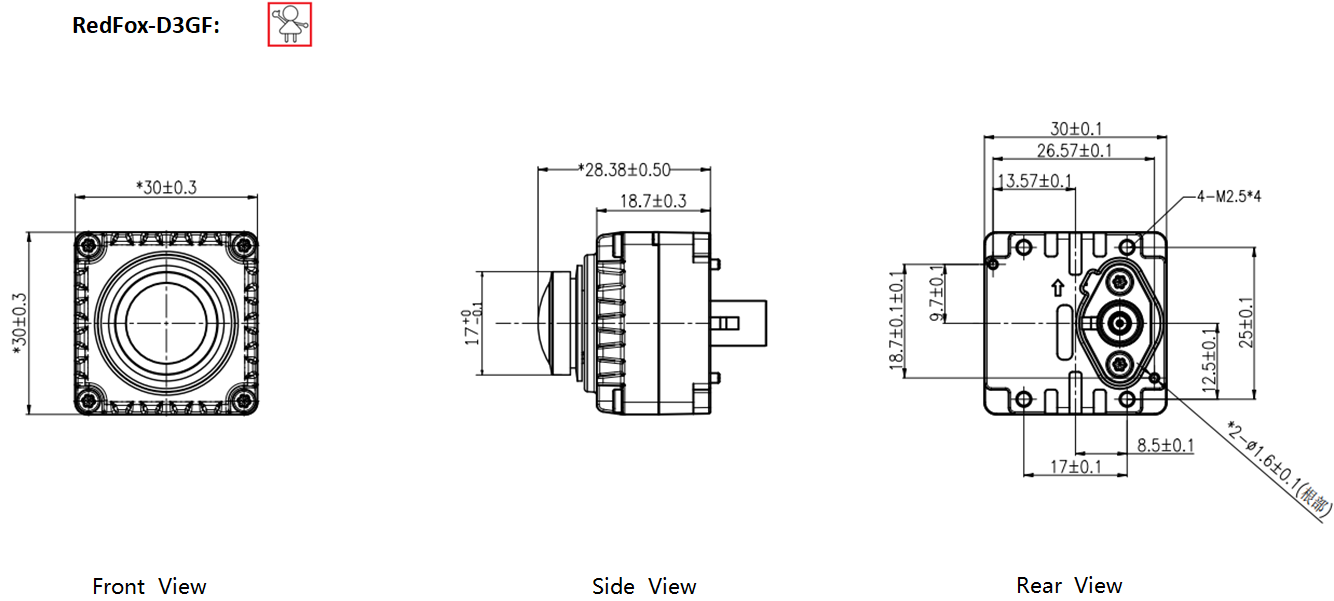

Dimensions

Hardware Overview

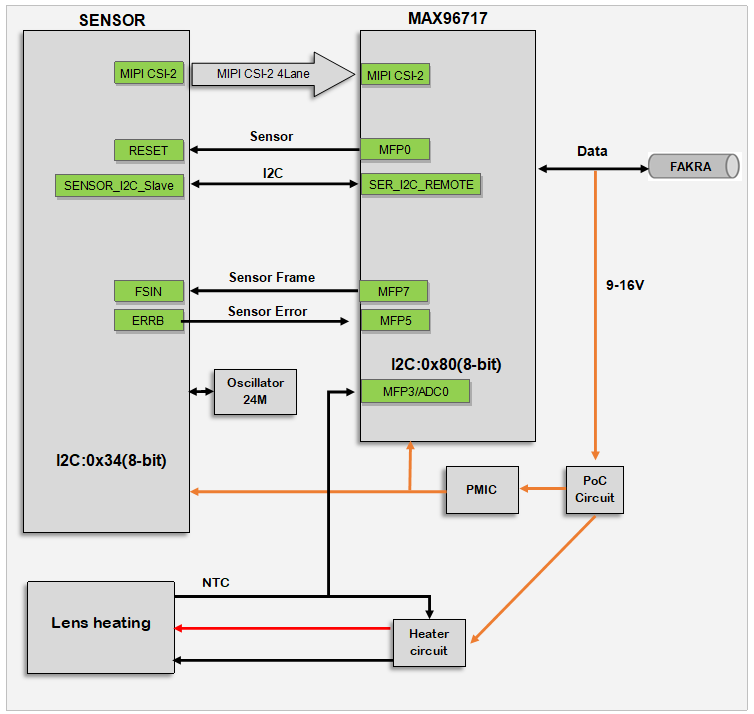

Block Diagram

I2C Address Information

Component	Parameter	Value
Serializer	Model	MAX96717
	I2C Address	0x80 (8bit address)
	GMSL Rate	GMSL2 (6G bps)
Sensor	I2C Address	0x34 (8bit address)
	Frame Sync	Controlled by MAX96717 MFP7
	Reset	Controlled by MAX96717 MFP0
	Data Type	YUV422 8bit

Lens Options

Model	HFOV	VFOV	F.No	EFL (mm)	DOF	Max Optical Distortion	Water Proof	Lens Mount
RedFox-D3GN	53.2°	43.6°	1.6	5.76	2.3~INF Focus at 6.9m	-22.4%	IP67	AA
RedFox-D3GW	118.4°	91.4°	2.0	3.04	0.51~INF Focus at 1.5m	-92%	IP67	AA
RedFox-D3GF	196°	160°	2	1.31	0.1~INF Focus at 0.4m	-84%	IP67	AA

Camera Integration with Customer's Self-developed Platform

For customers with their own deserializer who want to adapt our camera (serializer) to their platform, detailed technical coordination is required.

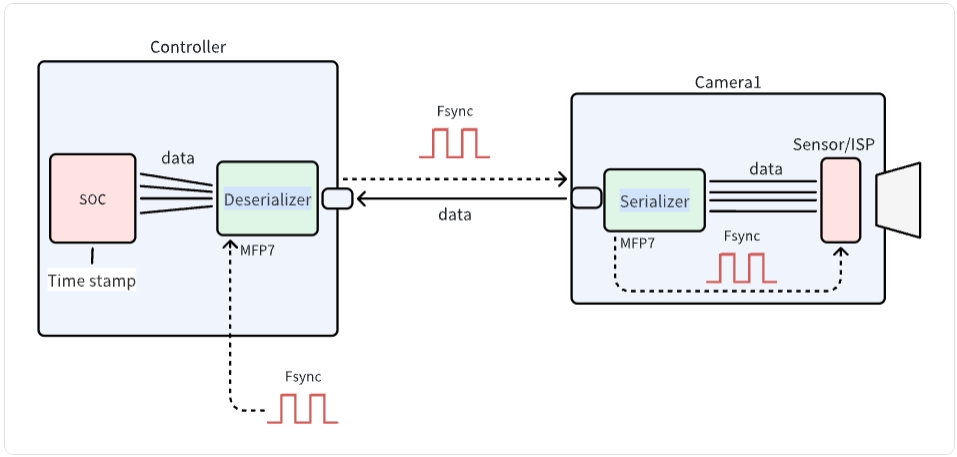

The diagram illustrates the communication architecture between a camera and controller system. It shows how data flows from the Sensor/ISP through the Serializer on the Camera side, across to the Deserializer and SOC on the Controller side. The system utilizes Fsync signals for synchronization and MFP7 interfaces for control. This architecture is essential for proper integration of SENSING cameras with customer-developed platforms.

2.2.1 Link Register Initialization

SENSING provides comprehensive technical support for RedFox-D3Gx integration:

Serializer and Deserializer Configuration
- Register configuration for the RedFox-D3Gx camera module - Getting Camera Information
- I2C communication protocol details
- MAX96717G serializer configuration parameters
Link Status Troubleshooting Guide
- Link training parameters for 6Gbps GMSL2 communication
- Error detection and recovery settings
- Signal integrity optimization

tip

Please refer to the software flow and demo code below to develop your driver code for RedFox-D3Gx integration.

2.2.2 Software Development

Deserializer Initialization

/* Example code for MAX9296 I2C initialization for RedFox-D3Gx */
#define MAX9296_I2C_ADDR 0x90 // 8-bit address

int max9296_init_redfox() {
    // Initialize I2C bus
    i2c_init();

    // Disable MIPI output during configuration
    i2c_write(MAX9296_I2C_ADDR, 0x0313, 0x00);
    delay_ms(100);

    // Configure link settings for GMSL2 (6Gbps) - RedFox-D3Gx specific
    i2c_write(MAX9296_I2C_ADDR, 0x0001, 0x02);

    // Configure linkA and linkB settings for GMSL2 selection
    i2c_write(MAX9296_I2C_ADDR, 0x0006, 0xC0);

    // Configure MIPI rate 1200Mbps for RedFox-D3Gx
    i2c_write(MAX9296_I2C_ADDR, 0x0320, 0x2C);

    // Enable MIPI output
    i2c_write(MAX9296_I2C_ADDR, 0x0313, 0x02);

    return 0;
}

RedFox-D3Gx Camera Configuration

/* RedFox-D3Gx Camera initialization with MAX96717G serializer */

#define MAX96717_I2C_ADDR 0x80 // 8-bit address for RedFox-D3Gx

int redfox_d3gx_init() {
    // Initialize deserializer first
    max9296_init_redfox();

    // Reset sensor through MAX96717G MFP0
    i2c_write(MAX96717_I2C_ADDR, 0x02BE, 0x10); // MFP0 high - sensor enable
    delay_ms(50);

    // Configure serializer for RedFox-D3Gx
    i2c_write(MAX96717_I2C_ADDR, 0x0057, 0x12);
    i2c_write(MAX96717_I2C_ADDR, 0x005B, 0x11);

    // Configure datatype for YUV422 8bit output
    i2c_write(MAX96717_I2C_ADDR, 0x0318, 0x5E);

    // Camera trigger sequence using MFP7
    i2c_write(MAX96717_I2C_ADDR, 0x02D3, 0x00); // MFP7 low
    delay_ms(300);
    i2c_write(MAX96717_I2C_ADDR, 0x02D3, 0x10); // MFP7 high - start streaming

    return 0;
}

2.2.3 Integration Steps

BSP Integration for RedFox-D3Gx

Device Tree Configuration:
- Modify the device tree to include CSI interface configuration for RedFox-D3Gx
- Configure GMSL2 link parameters for 6Gbps operation
- Add RedFox-D3Gx camera driver to kernel build configuration
- Configure media controller pipeline for automatic defogging camera
Driver Integration:
- Implement RedFox-D3Gx specific sensor controls
- Configure automatic defogging algorithm parameters
- Set up HDR processing pipeline (up to 120 dB range)
- Implement temperature compensation for -40°C to +85°C operation

Application Development for RedFox-D3Gx

/* RedFox-D3Gx Camera Application Example */
#include "redfox_camera_api.h"
#include <linux/videodev2.h>

int main() {
    // Open RedFox-D3Gx camera device
    int fd = open("/dev/video0", O_RDWR);
    if (fd < 0) {
        perror("Failed to open RedFox-D3Gx camera device");
        return -1;
    }

    // Configure video capture format for RedFox-D3Gx
    struct v4l2_format fmt = {0};
    fmt.type = V4L2_BUF_TYPE_VIDEO_CAPTURE;
    fmt.fmt.pix.width = 1920;
    fmt.fmt.pix.height = 1536;
    fmt.fmt.pix.pixelformat = V4L2_PIX_FMT_UYVY; // YUV422 format

    if (ioctl(fd, VIDIOC_S_FMT, &fmt) < 0) {
        perror("Failed to set RedFox-D3Gx format");
        close(fd);
        return -1;
    }

    // Configure automatic defogging parameters
    struct v4l2_control ctrl;
    ctrl.id = V4L2_CID_AUTO_DEFOG_ENABLE;
    ctrl.value = 1; // Enable automatic defogging
    ioctl(fd, VIDIOC_S_CTRL, &ctrl);

    // Set HDR mode for enhanced dynamic range
    ctrl.id = V4L2_CID_HDR_MODE;
    ctrl.value = 1; // Enable HDR processing
    ioctl(fd, VIDIOC_S_CTRL, &ctrl);

    // Request and map buffers for high-resolution capture
    // ... (buffer setup code for 1920x1536 resolution) ...

    // Start streaming with automatic defogging
    // ... (streaming code with defogging enabled) ...

    // Capture and process frames with enhanced clarity
    // ... (frame processing with defogging algorithms) ...

    // Cleanup resources
    close(fd);
    return 0;
}

2.2.4 Data Processing Pipeline

MIPI CSI Interface Processing

After receiving RedFox-D3Gx data through the MIPI CSI interface:

Data Reception
- MIPI CSI-2 protocol implementation for 6Gbps GMSL2 data
- Data rate configuration optimized for RedFox-D3Gx specifications
- Error detection and correction for automotive-grade reliability
Image Processing
- YUV422 data parsing and validation
- Automatic defogging algorithm application
- HDR processing for enhanced dynamic range (up to 120 dB)
- Image format conversion and optimization
- Display configuration with enhanced clarity

Performance Optimization

Real-time Processing: Optimized algorithms for 60fps operation
Temperature Compensation: Automatic adjustment for -40°C to +85°C range
Power Management: Efficient processing to maintain 400mA@12V consumption

2.3 Technical Support and Documentation

2.3.1 Comprehensive Documentation Package

Hardware Specifications
- Detailed register descriptions for MAX96717G serializer
- Sensor configuration parameters for SONY 2.95MP RGGB
- Electrical characteristics and timing diagrams
Software Integration Guides
- Driver development templates
- API reference documentation
- Integration examples for popular platforms

2.3.2 Professional Engineering Support

Technical Consultation
- Platform-specific integration guidance
- Performance optimization recommendations
- Custom configuration development
Debug and Troubleshooting
- Remote debugging assistance
- Signal integrity analysis
- Performance profiling and optimization
Ongoing Support
- Firmware updates and enhancements
- Long-term technical partnership
- Training and knowledge transfer

Professional Integration Support

SENSING Technology provides comprehensive technical support for RedFox-D3Gx integration with automotive, industrial, and embedded platforms. Our engineering team offers detailed documentation, sample code, and hands-on technical assistance to ensure successful deployment of automatic defogging camera solutions.

For technical assistance, please contact our support team with your specific platform requirements and integration objectives.
