SG2-IMX662C-MIPI Camera
Overview
SG2-IMX662C-MIPI-HXXX camera features the SONY IMX662 CMOS image sensor (2.13MP), pre-focused with an M12 lens, compatible with various SOC platforms. This high-performance camera delivers 1080p resolution at up to 60fps with HDR support.
Technical Specifications
Key Features
| Parameter | Value |
|---|---|
| Model | SG2-IMX662C-MIPI-HXXX |
| Sensor | SONY 2.13MP IMX662 RGGB |
| ISP | N/A |
| Sensor Type | Rolling Shutter |
| Image Size | 1/2.8 inch CMOS |
| Output Resolution | 1920H×1080V |
| Frame Rate | Up to 60 fps |
| Pixel Size | 2.9μm |
| HDR Support | Yes |
| Output Format | MIPI/RAW@10bit/12bit |
| Power Supply | 3.3V |
| Current | < 300mA @3.3VDC |
| Interface | FPC |
| Connector | FH67-30S-0.5SV |
| Operating Temp. | -30°C ~ +85°C |
| Dimensions | W: 20mm, L: 35mm, H: 25mm |
| Weight | < 50g |

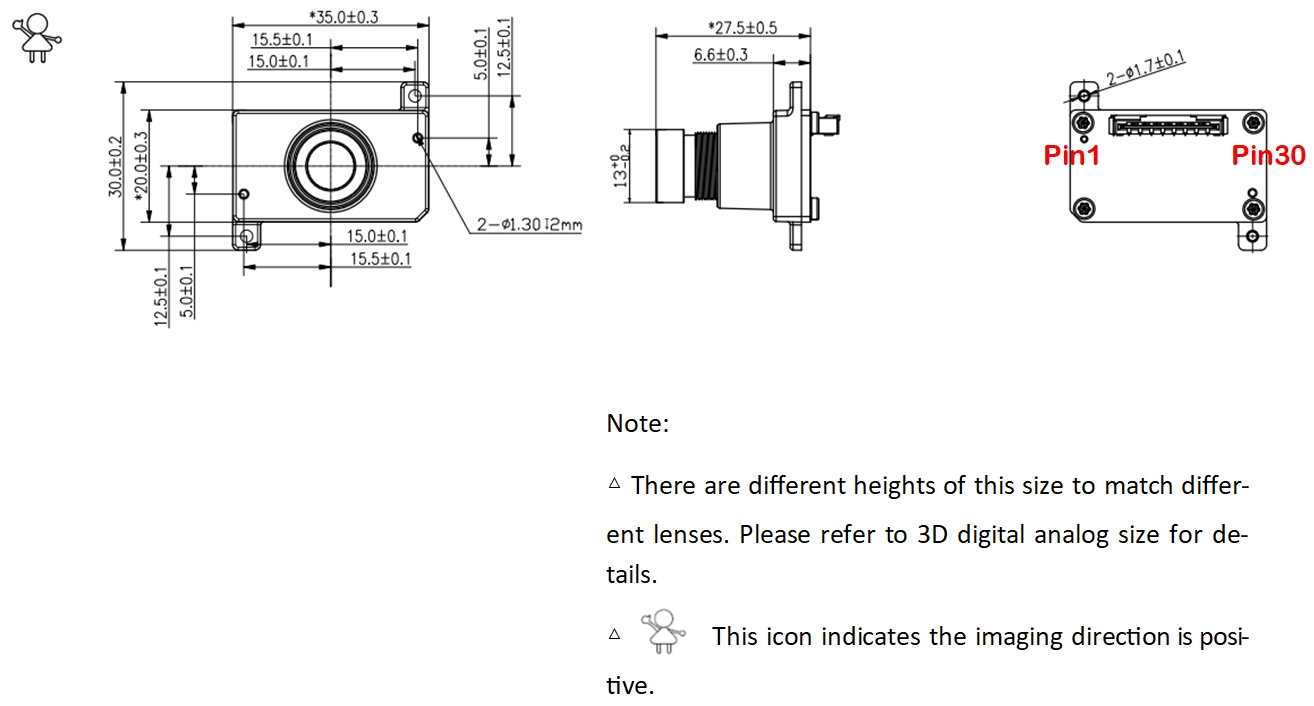

Physical Dimensions
Hardware Integration

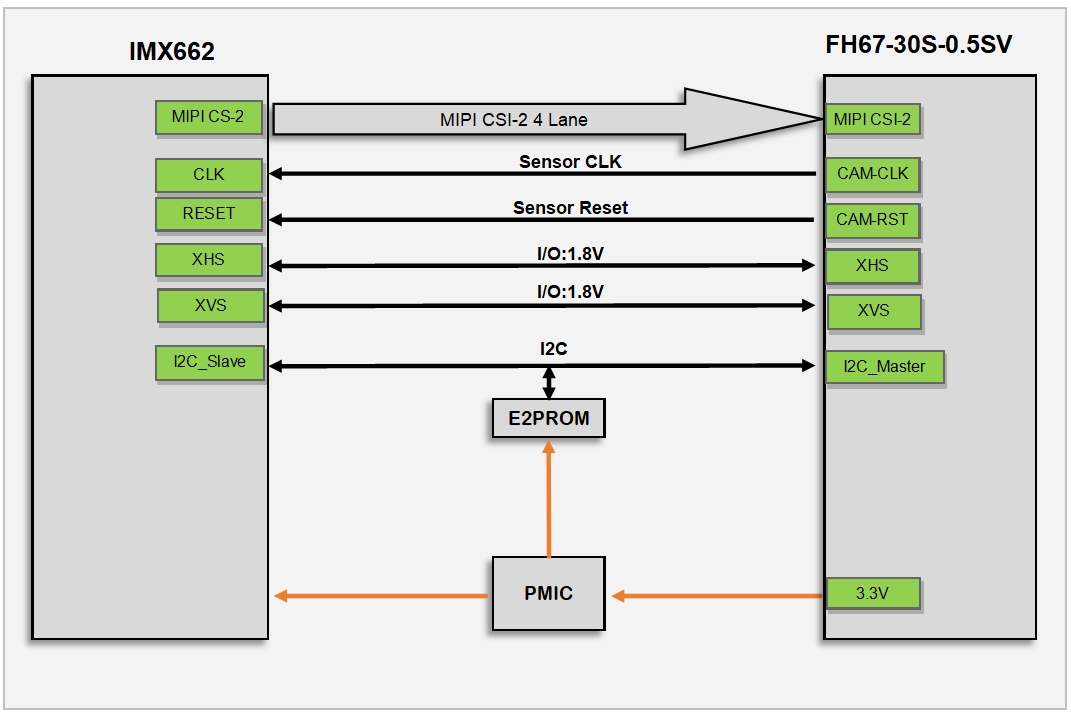

System Architecture
I2C Address Configuration
| Component | I2C Address |
|---|---|
| EEPROM | 0xA0 (8-bit address) |
| Sensor | 0x34 (8-bit address) |
Connector Pin Definitions
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | E2PROM-WP | INPUT: 3.3V/1.8V | Write protection for E2PROM L: Disable writing; H: Enable writing |
| 2 | / | N/C | Not Connected |
| 3 | / | N/C | Not Connected |
| 4 | GND | POWER | Ground |
| 5 | XHS | I/O: 1.8V | Horizontal sync generator |
| 6 | XVS | I/O: 1.8V | Vertical sync generator |
| 7 | GND | POWER | Ground |
| 8 | D1_N | OUTPUT | MIPI Data Lane 1 (Negative) |
| 9 | D1_P | OUTPUT | MIPI Data Lane 1 (Positive) |
| 10 | GND | POWER | Ground |
| 11 | D2_N | OUTPUT | MIPI Data Lane 2 (Negative) |
| 12 | D2_P | OUTPUT | MIPI Data Lane 2 (Positive) |
| 13 | GND | POWER | Ground |
| 14 | CLK_N | OUTPUT | MIPI Clock (Negative) |
| 15 | CLK_P | OUTPUT | MIPI Clock (Positive) |
| 16 | GND | POWER | Ground |
| 17 | D3_N | OUTPUT | MIPI Data Lane 3 (Negative) |
| 18 | D3_P | OUTPUT | MIPI Data Lane 3 (Positive) |
| 19 | GND | POWER | Ground |
| 20 | D4_N | OUTPUT | MIPI Data Lane 4 (Negative) |
| 21 | D4_P | OUTPUT | MIPI Data Lane 4 (Positive) |
| 22 | GND | POWER | Ground |
| 23 | SENSOR-RESET | INPUT: 1.8V | Sensor reset signal |
| 24 | CAM-CLK | INPUT | Clock signal input (24MHz) Module has built-in crystal oscillator |
| 25 | GND | POWER | Ground |
| 26 | CAM-SCL | I/O: 3.3V | I2C Clock (Pull up 10K) |
| 27 | CAM-SDA | I/O: 3.3V | I2C Data (Pull up 10K) |
| 28 | GND | POWER | Ground |
| 29 | VCC-3.3V | POWER | 3.3V Power Supply |
| 30 | VCC-3.3V | POWER | 3.3V Power Supply |
Power-Up Sequence
The SG2-IMX662C-MIPI camera has minimal power-up sequence requirements. Simply ensure that the RESET signal is asserted after power supplies are stable.
Lens Options
| Model | HFOV | VFOV | F.No | EFL | Max Optical Distortion | Lens Mount |
|---|---|---|---|---|---|---|
| SG2-IMX662C-MIPI-H30X | 29° | 16° | 1.6 | 10.96mm | -2% | M12 |
| SG2-IMX662C-MIPI-H60F | 58° | 31° | 1.6 | 5.8mm | -20% | M12 |
| SG2-IMX662C-MIPI-H100F1 | 96° | 52° | 1.6 | 3.55mm | -41% | M12 |
| SG2-IMX662C-MIPI-H120L | 121° | 66° | 2.8 | 2.8mm | -61% | M12 |
Documentation & Resources
Download the complete SG2-IMX662C-MIPI-HXXX Camera Datasheet for detailed specifications and integration guidelines.
Installation Guide
Quick Setup Procedure
- Connect the FPC cable to the camera module
- Mount the camera onto the Jetson Orin Nano/NX Developer Kit
- Power on the system and configure software drivers
Software & Driver Support
Driver Repository
Access the latest camera drivers from our GitHub repository:
Development Kits
| Name | Compatible Developer Kit | Max Camera Inputs |
|---|---|---|
| NVIDIA MIPI CSI-2 Camera Developer Kit | NVIDIA Jetson Orin Nano/Orin NX Developer Kit | 2 |
Driver Downloads
- Select the appropriate driver package based on your JetPack version
- Copy the full link address to DownGit to download the package
- Follow the installation instructions included in the package
NVIDIA JetPack is the official SDK for Jetson development boards, including OS, drivers, CUDA, cuDNN, TensorRT, and development tools. JetPack versions correspond to specific L4T (Linux for Tegra) releases:
- JetPack 6.2: L4T R36.4.3
- JetPack 6.1: L4T R36.4
- JetPack 6.0: L4T R36.3
- JetPack 5.1.2: L4T R35.4.1
For more information, visit NVIDIA's Jetson Download Center.
Accessories
FPC Cable Options
The SG2-IMX662C-MIPI supports two FPC cable types for different connection requirements:
| Cable Type | Part Number | Specification |
|---|---|---|
| 22-Pin FPC | 339901-0010 | 0.5mm Pitch |
| 15-Pin FPC | 339901-0011 | 1.0mm Pitch |
