SG20-IMX283C-MIPI Camera
SG20-IMX283C-MIPI has been discontinued and is no longer available for purchase. Its product page has been taken down from the SENSING website, so purchase links are no longer provided here.
This documentation stays online as technical reference for existing deployments. For new designs or replacement recommendations, please contact SENSING technical support.
Overview

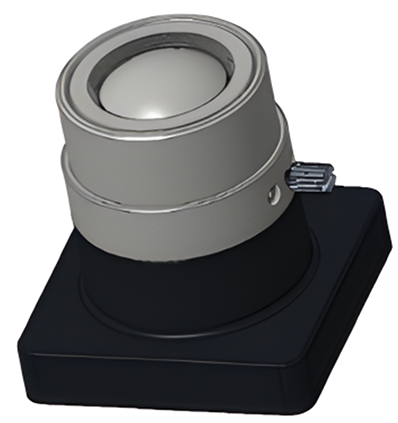

The SG20-IMX283C-MIPI is a high-performance camera module featuring the Sony IMX283 CMOS image sensor, delivering 20.3MP resolution for exceptional image quality. This camera excels in various applications including UAV aerial photography, remote monitoring systems, and precision industrial inspection. Its versatile design allows integration with multiple SOC platforms including NVIDIA Jetson.
Technical Specifications
Key Features
| Parameter | Value |
|---|---|
| Sensor | Sony 20.3MP IMX283 RGGB |
| ISP | N/A |
| Chip size | 16.226 mm (H) × 12.654 mm (V) |
| Image Size | Diagonal 15.86mm (Type 1) |
| Resolution | 5472H×3648V@20fps RAW12 5472H×3648V@25fps RAW10 3840H×2160V@50fps RAW10 2736H×1824V@50fps RAW12 (2/2 binning) 1824Hx1216V@60fps RAW12 (3/3 binning) |
| Pixel Size | 2.40um*2.40um |
| HDR Support | N/A |
| Output Format | MIPI RAW10/RAW12 |
| Power Supply | 3.3V |
| Current | < 500mA @3.3VDC |
| Camera interface | FPC |
| Connector | AFC07-S22ECA-00 |
| Operating Temp. | -20 to +75°C |
| Performance temp. | -20 to +60°C |
| Dimensions | W: 40mm, L: 40mm, H: 10.1mm |
| Weight | < 400g |

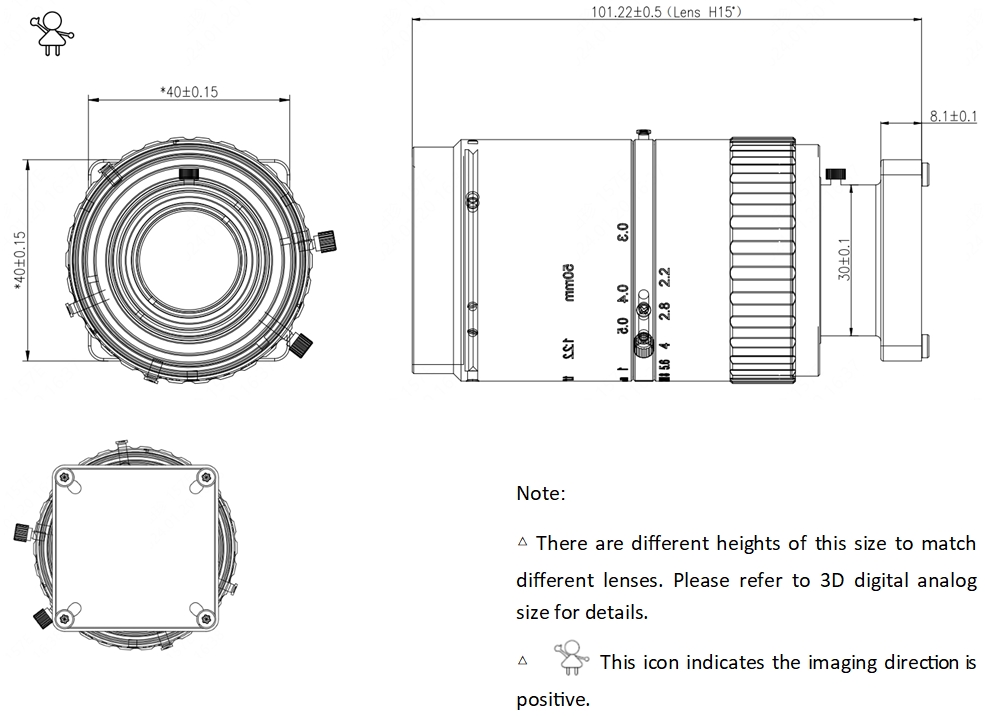

Physical Dimensions
Lens Options
The SG20-IMX283C-MIPI supports various C-mount lenses to accommodate different field-of-view requirements:
Hardware Integration
System Architecture
I2C Address Configuration
| Component | I2C Address |
|---|---|
| EEPROM | 0xA0 (8-bit address) |
| Sensor | 0x20 (8-bit address) |
Connector Pin Definitions
| Pin | Signal | Description |
|---|---|---|
| 1, 4, 7, 10, 13, 16, 19 | GND | Ground |
| 2 | D1 N | MIPI Data Lane 1 Negative |
| 3 | D1 P | MIPI Data Lane 1 Positive |
| 5 | D2 N | MIPI Data Lane 2 Negative |
| 6 | D2 P | MIPI Data Lane 2 Positive |
| 8 | CLK N | MIPI Clock Negative |
| 9 | CLK P | MIPI Clock Positive |
| 11 | D3 N | MIPI Data Lane 3 Negative |
| 12 | D3 P | MIPI Data Lane 3 Positive |
| 14 | D4 N | MIPI Data Lane 4 Negative |
| 15 | D4 P | MIPI Data Lane 4 Positive |
| 17 | CAM-PWDN | Power Down (1.8V or 3.3V/IO) |
| 18 | CAM-CLK | Camera Clock (Default: Internal 24MHz) |
| 20 | CAM-SCL | I²C Clock (3.3V/IO) |
| 21 | CAM-SDA | I²C Data (3.3V/IO) |
| 22 | VCC-3.3V | Power Supply |
Installation & Setup
Hardware Connection
- Connect the appropriate FPC cable to the camera module
- Mount the camera securely onto the Jetson Orin Nano/NX Developer Kit
- Power on the system and proceed to driver installation
Software & Driver Support
Driver Repository
Access the latest camera drivers from our GitHub repository:
Driver Downloads
- Select the appropriate driver package based on your JetPack version
- Copy the full link address to DownGit to download the package
- Follow the installation instructions included in the package
| # | JetPack Version | Compatible Platform | Download Link |
|---|---|---|---|
| 1 | JP6.1 (L4T R36.4) | Jetson Orin Nano/NX Devkit | Download |
NVIDIA JetPack is the official SDK for Jetson development boards, including OS, drivers, CUDA, cuDNN, TensorRT, and development tools. JetPack versions correspond to specific L4T (Linux for Tegra) releases:
- JetPack 6.2: L4T R36.4.3
- JetPack 6.1: L4T R36.4
- JetPack 6.0: L4T R36.3
- JetPack 5.1.2: L4T R35.4.1
For more information, visit NVIDIA's Jetson Download Center.
Accessories
FPC Cable Options
The SG20-IMX283C-MIPI supports FPC cable types for different connection requirements:
| Cable Type | Part Number | Specification |
|---|---|---|
| 22-Pin FPC | AFC07-S22ECA-00 | 0.5mm Pitch |
