GMSL2 Camera Repeater Applications

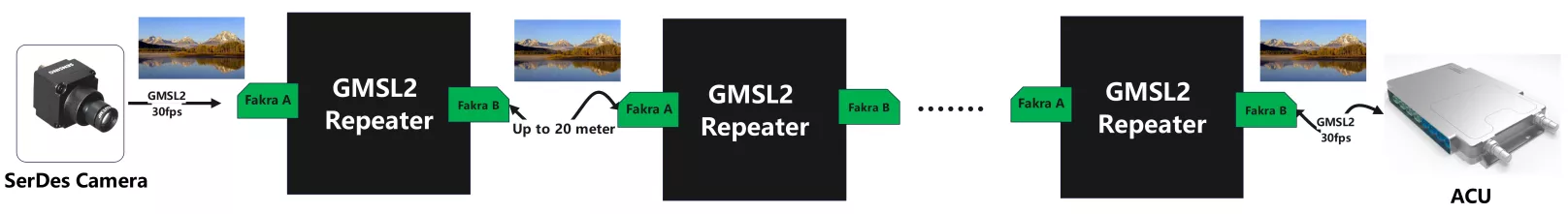

The SENSING GMSL2 Camera Repeater is an essential component for extending GMSL2 transmission distances while maintaining signal integrity. This document outlines the key applications and use cases for implementing the GMSL2 Repeater in automotive, industrial, and robotics environments.
Automotive Applications
Advanced Driver Assistance Systems (ADAS)
The GMSL2 Camera Repeater serves as a critical component in ADAS implementations where cameras need to be positioned at significant distances from the processing ECU:
- Surround View Systems: Enables seamless integration of multiple cameras positioned around the vehicle perimeter
- Forward-Facing Camera Systems: Extends the transmission distance for long-range detection cameras
- Lane Departure Warning Systems: Ensures reliable signal transmission from cameras to ECU over extended distances
Camera Monitoring Systems (CMS)
In CMS applications where traditional mirrors are replaced with cameras:
- Side-View Camera Systems: Repeaters allow flexible camera placement while maintaining signal quality
- Rear-View Camera Systems: Enables reliable signal transmission from trunk-mounted cameras to dashboard displays
- Commercial Vehicle Applications: Supports extended cable runs in larger vehicles like trucks and buses
Public Transportation & Infrastructure
Rail Transport
In railway applications:
- Railway Monitoring: Supports extended camera deployments along tracks and in stations
- Train Monitoring Systems: Enables camera signal extension throughout multiple train cars
- Level Crossing Security: Facilitates optimal camera positioning at railway crossings
Implementation Benefits
| Benefit | Description |
|---|---|
| Extended Transmission Range | Increases GMSL2 transmission distance up to 15-20 meters per repeater |
| Signal Integrity | Maintains full signal quality with minimal degradation |
| EMI Resistance | Preserves the excellent EMI resistance characteristics of GMSL2 technology |
| Flexible Installation | Enables more flexible camera placement options in complex vehicle architectures |
| Cost Efficiency | Reduces cabling costs by allowing optimal routing paths |
| System Reliability | Enhances overall system reliability in challenging environments |
Deployment Considerations
When implementing the GMSL2 Camera Repeater in your application:
- Power Supply: Ensure stable 9-12V DC power supply to the repeater
- Mounting Position: Install in protected locations away from extreme heat sources
- Cable Management: Use high-quality coaxial cables with proper shielding
- Software Integration: Utilize provided example code for seamless integration
- Thermal Management: Consider adequate thermal dissipation in enclosed spaces
